D-Link DGS-1100-24V2/E Switch 24xGb
D-Link

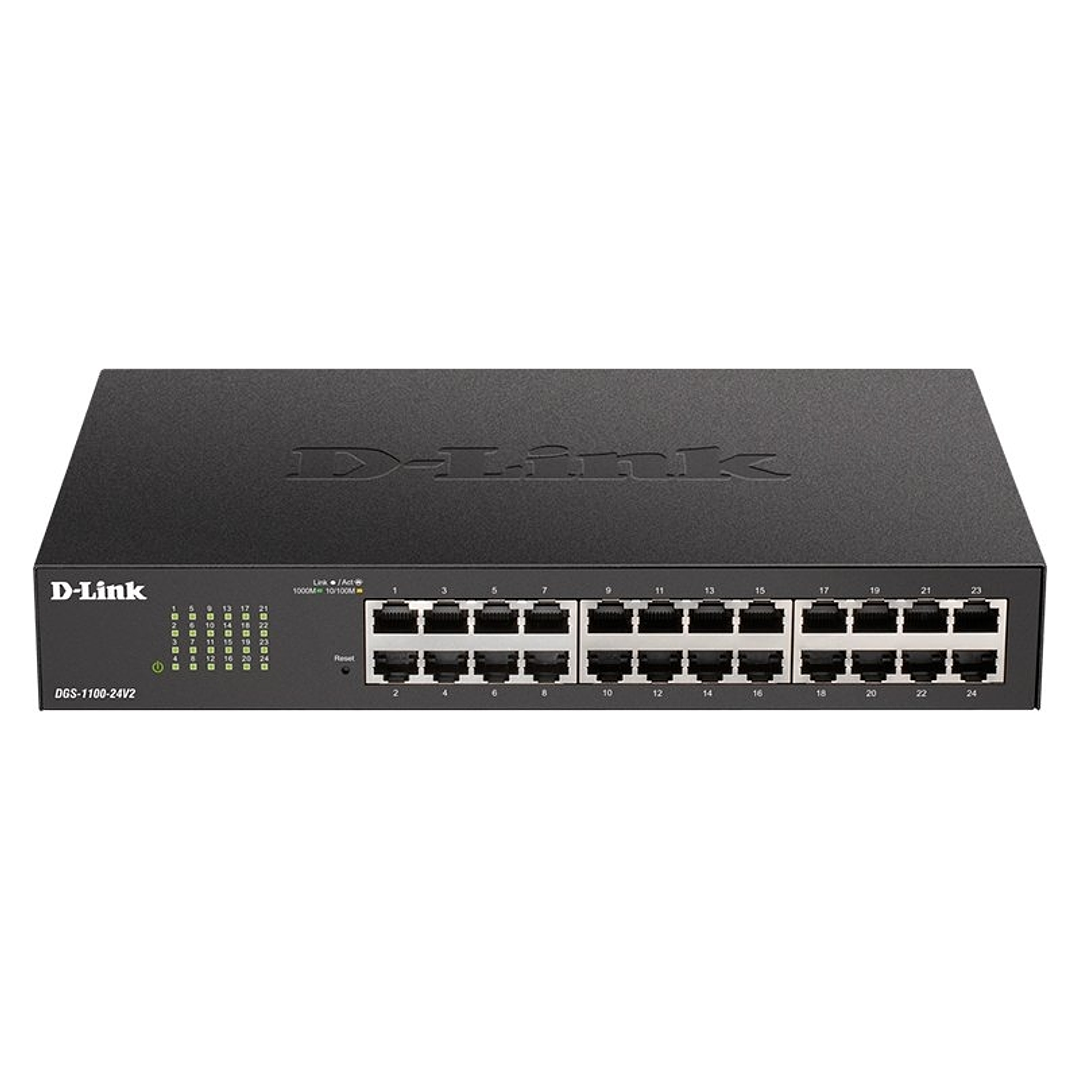

D-Link DGS-1100-24V2/E Switch 24xGb

157,00€ EUR
DGS-1100-24V2/E
4
+
-
Only 4 units of this product remain


Marca D-Link
Modelo DGS-1100-24V2/E
Características Hardware General
- Versión de hardware: B1
- Tamaño: 11" de escritorio / montaje en Rack, altura de 1U.
- Nº de puertos: 24 - 10/100/1000 Mbps
- Función de los puertos:
  Auto MDI / MDIX
  IEEE 802.3x Flow Control admite el modo Full-Duplex
  Admite half/full-duplex operation (full/half at 10/100 Mbps, full at 1000 Mbps)half/full-duplex operation (full/half at 10/100 Mbps, full at 1000 Mbps)
Rendimiento
- Capacidad de conmutación: 48 Gbps
- Velocidad máxima de reenvío: 35,71 Mpps
- Tamaño de la tabla de direcciones MAC: 8K entradas
- Búfer de paquetes: 512 Kbits
- Memoria Flash: 8 Mbyte
Alimentación
- Consumo típico: 10.37 W
- Consumo máximo: 13.94 W
Físicas
- Entrada de energía: 100 a 240 V CA
- MTBF: 2.406.109 horas
- Acústica: 0 dB (A)
- Disipación de calor: 47,57 BTU/hr
- Peso: 1,63 kg
- Dimensiones: 280 x 180 x 44 mm
- Ventilación: sin ventilador
Características Software VLAN
- Port-based VLAN
- 802.1Q tagged VLAN
- Auto Surveillance VLAN
- Voice VLAN
- Management VLAN
- Asymmetric VLAN
- VLAN Group
  - Supports 128 static VLAN groups
  - Max. 4094 VIDs
Caracteristicas L2
- Flow Control
  - 802.3x Flow Control
  - HOL Blocking Prevention
- Jumbo Frames up to 9216 Bytes
- IGMP Snooping
  - IGMP v1/v2/v3 awareness Snooping
  - Supports 64 Groups
  - IGMP Snooping Querier
- Loopback Detection
- Cable Diagnostics
- LLDP
- Port Mirroring
  - One-to-One
  - Many-to-One
- Statistics
  - Tx Ok
  - Tx Error
  - Rx Ok
  - Rx Error
- Spanning Tree Protocol
  - 802.1D STP
  - 802.1w RSTP
Quality of Service (QoS)
- 802.1p Quality of Service
- 4 queues per port
- Queue Handling
  - Strict
  - Weighted Round Robin (WRR)
- Port-based Bandwidth Control (Rate Limiting)
  - Ingress: 8 Kbps
  - Egress: 64 Kbps
Seguridad
- D-Link Safeguard
- Traffic Segmentation
- Broadcast/Multicast/Unknown Unicast Storm Control
- DoS Attack Prevention
- SSL
Gestión
- Web-based GUI (Supports IPv4/IPv6)
- Client-based Utility (D-Link Network Assistant Utility)
Estándares MIB/RFC
- RFC768 UDP
- RFC791 IP
- RFC792 ICMP
- RFC793 TCP
- RFC826 ARP
- RFC1213 MIB II
- RFC1493 Bridage MIB
- RFC1907 SNMPv2 MIB
- RFC1215 MIB Traps Convention
- RFC2233 Interface Group MIB
- RFC2665 Ether-like MIB
- RFC4363 IEEE 802.1p MIB
- ZoneDefense MIB
- Private MIB
- RFC951 BootP client
- RFC1542 BootP/DHCP client
- RFC2236 IGMP Snooping
Fecha Revisión 13-06-2022 por MPM
